This instrument can measure the air pressure in a single pipe, or the differential pressure in two pipes. It uses a quality pressure sensor, high-accuracy ADC, and low-power MCU. Multifunctional, with temperature/pressure measurement and storage function, low battery reminder function, data hold function, max/min value mode, DIF mode, etc. It is suitable for measuring ventilation and air conditioning systems, and is widely used for gas measurement, calibration, and other problems in pressure systems.
Features:
Uses a quality pressure sensor, high-accuracy ADC, and low-power MCU.
Professional digital manometer for indoor temperature measurement, with wide range, high resolution, and high measurement accuracy.
Multifunctional, with temperature/pressure measurement and storage function, low battery reminder function, data hold function, max/min value mode, DIF mode, etc.
℃ and ℉ can be switched.
There are 12 adjustable pressure units, you can adjust to mmHg, inHg, ftH₂O, cmH₂O, inH₂O, Pa, KPa, mbar, bar, psi, Kgcm², and ozin².
Equipped with a large digital display, you can see the data clearly.

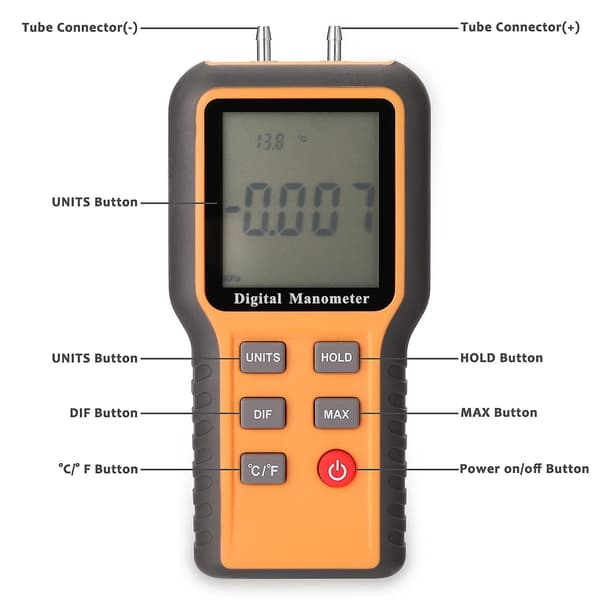

Quickly measures real-time pressure value through a single channel, and detects pressure differences between two detection ports through two channels.
It is suitable for measuring ventilation and air conditioning systems, and is widely used for gas measurement, calibration, and other problems in pressure systems.
Specifications:
Name: Digital Manometer
Material: ABS
Display: LCD

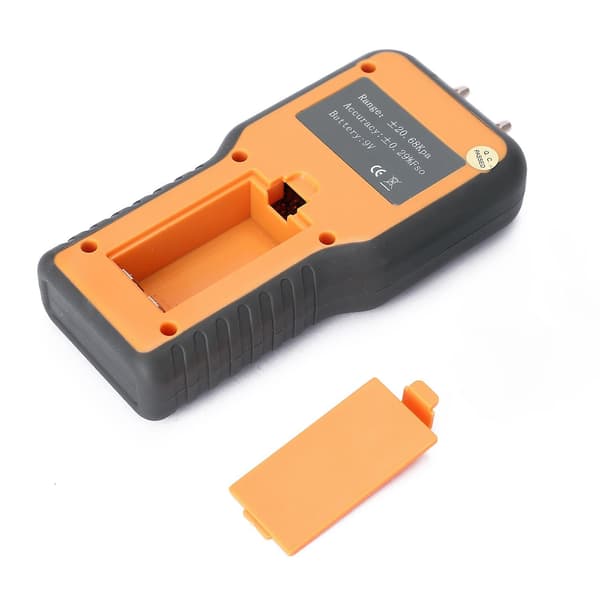

Battery: 1 * 6F22 battery, 9V, 250mAh (not included)
Pressure measurement range: ±2.999psi
Accuracy: ±0.3%FSO (at 25℃)
Data storage quantity: 100
Max pressure: 20KPa
Units: ℃/℉ switchable
Low battery reminder: ≤6.8V
Automatic shutdown: 15 min after no operation
Working temperature: 0-50℃ (32-132℉)
Storage temperature: -10℃ to 60℃ (14-140℉)

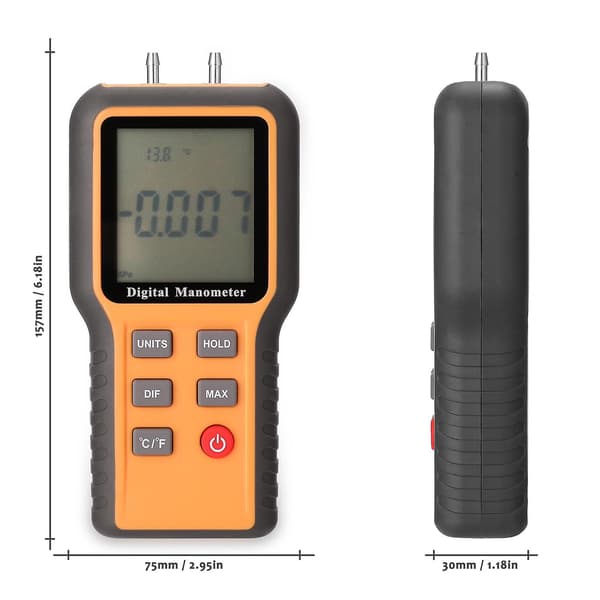

Item size: 159 * 76 * 32mm / 6.26 * 2.99 * 1.26in
Carrying case size: 180 * 110 * 30mm / 7.09 * 4.33 * 1.18in
Item weight: 260g / 9.17ounce
Package size: 205 * 145 * 40mm / 8.07 * 5.71 * 1.57in
Package weight: 290g / 10.23ounce

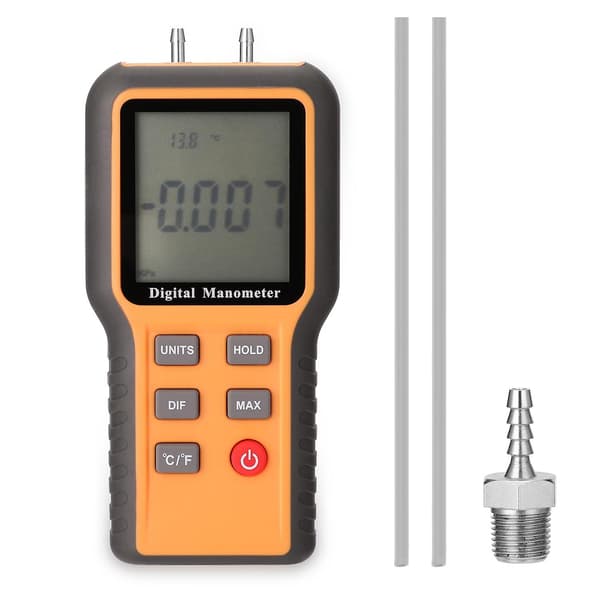

Package list:
1 * Digital Manometer
2 * Hose
1 * Adapter
1 * Manual
1 * Carrying case
