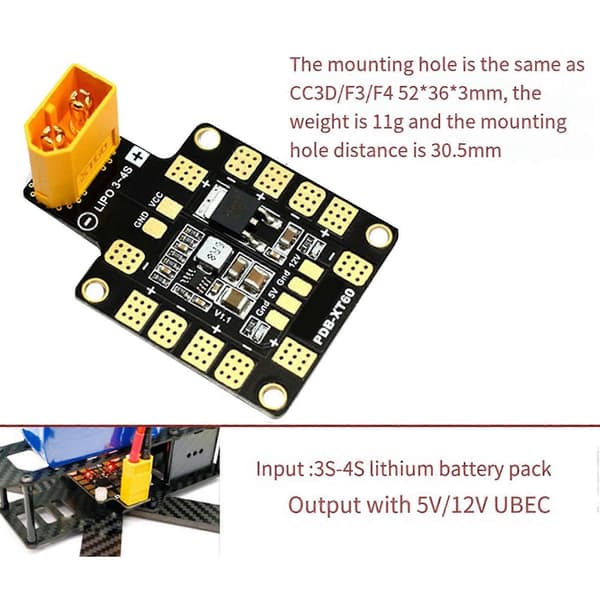

PDB-XT60 has been engineered to provide the highest possible performance and reliability in a 36 x 50mm and 4-layer PCB. It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronized and regulated DC 5V outputs and linearly regulated DC 12V to power cameras, servos, RC receivers, flight controllers, video transmitters, LEDs, etc. It offers an XT60 connector to conveniently connect the LiPo pack.
Color: Black
Material: PCB
General:
Input voltage range (3S-4S LiPo operation): 9 - 18V DC
Regulated 5V and 12V outputs
LED power indicators (5V and 12V outputs)
6 ESC outputs and 1 pair of VCC/GND pads
ESC outputs:
Continuous current: 25A x 4 or 15A x 6
Peak current (10 seconds/minute): 30A x 4 or 20A x 6
BEC 5V output:
Designed for RC receivers, flight controllers, OSD, and servos.
DC/DC synchronous buck regulator.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amperes (Max. 2.5A 10s/minute)
Output ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)
BEC 12V output:
Designed for Video TX or FPV camera with linear regulator.
Battery should be 4S LiPo (13~18V DC)
Voltage: 12.0 +/- 0.3VDC
Continuous current: 500mA (Max. 0.8A 5s/minute)
Short-circuit tolerant (2 seconds/minute)
BEC 12V @ 3S LiPo
Output voltage = 3S LiPo voltage -1V
Features:

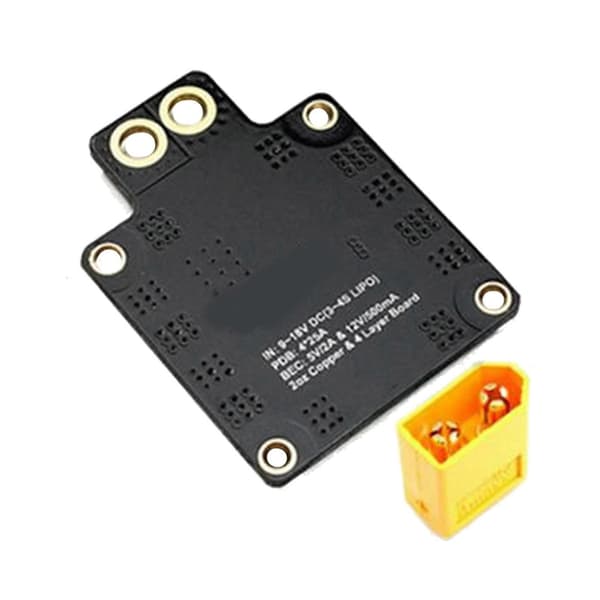

2oz copper, 4-layer and 1.6mm PCB.
Built-in XT60 connector
Total 6 pairs of ESC solder pads suitable for H- or X-type frame 5V & 12V Output LED indicators & Short-circuit tolerant
Product appearance, color, and printing may vary from batch to batch, but this does not affect use.
Package contents:

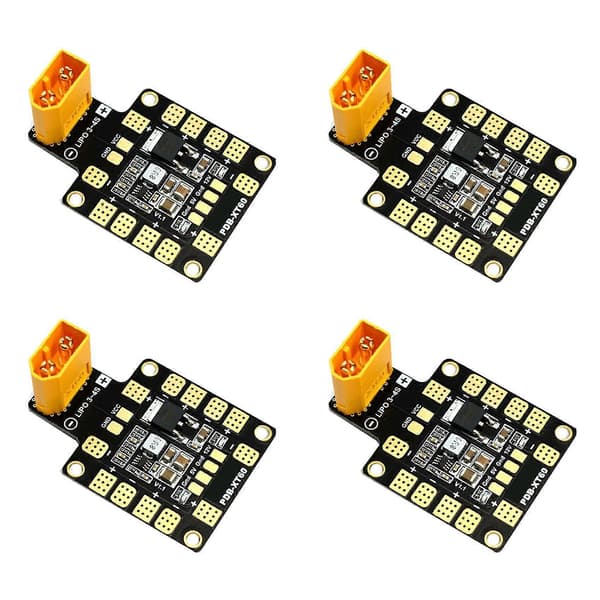

4 x Power distribution board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
