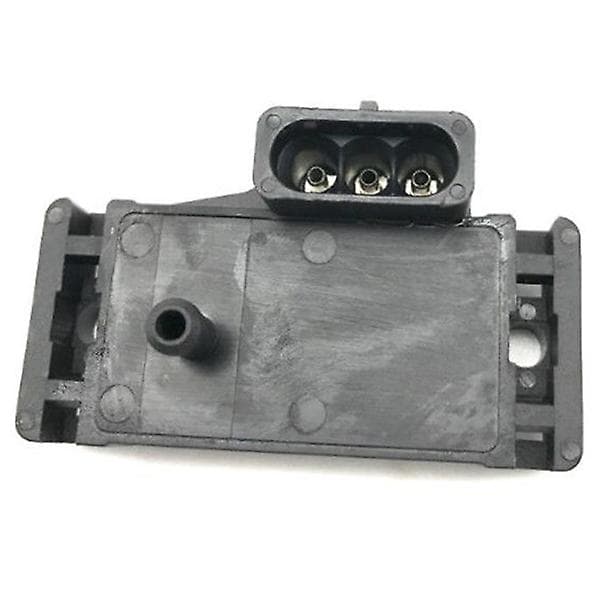

The MAP sensor is a true absolute sensor, which means it allows your engine management system to compensate correctly for altitude.
The pressure inside your intake manifold is an extremely important input to the ECU.
A quality MAP sensor is crucial for your engine's performance.
These sensors respond to changes in manifold pressure and relay the information to the ECU in the form of a voltage signal.
3 bar MAP sensors accurately calculate boost pressure up to 43.5 psi gauge (58 psi absolute), while providing you with a smooth and repeatable idle.
Measurement deviation: less than or equal to +/- 1%
Pressure measurement: less than 43.5 psi gauge (58 psi absolute)
Operating temperature range: -40 to 267 Fahrenheit (-40 to 125 Celsius)
Response: 1 ms, 10 to 90% pressure step.
Compatible with all aftermarket engine management systems.

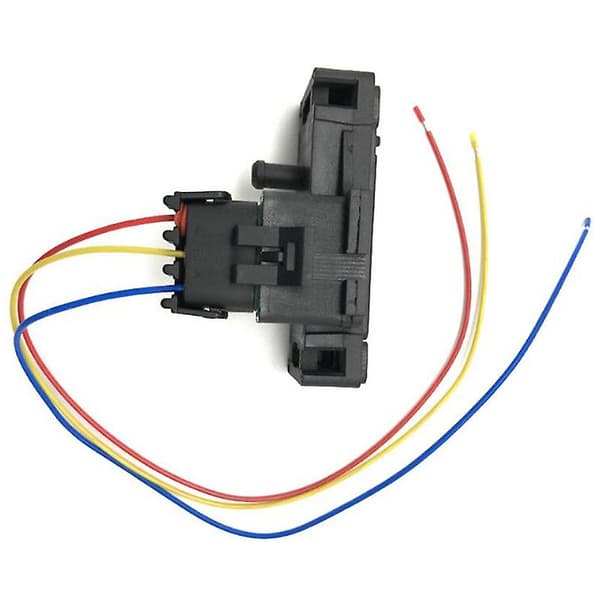

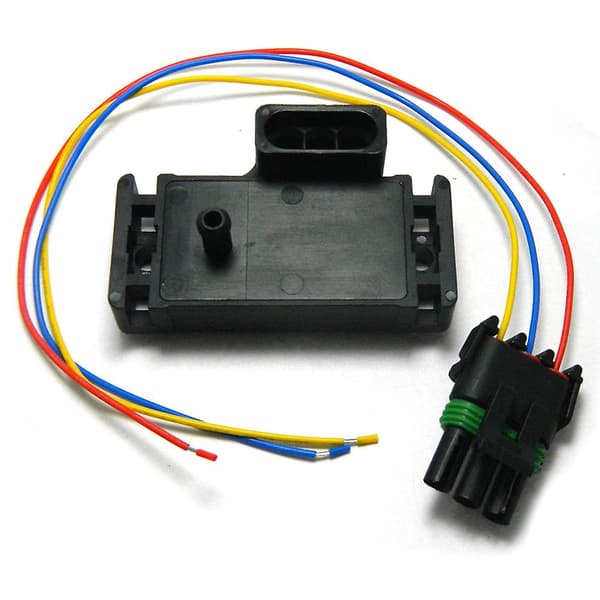

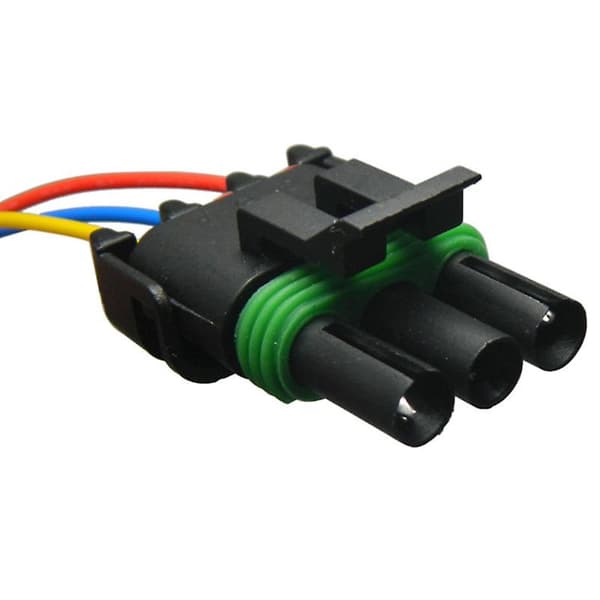

Pinout is:
A = Ground = Yellow wire
B = Sensor output = Blue wire
C = +5 Volt source = Red wire
Color: black
Material: ABS

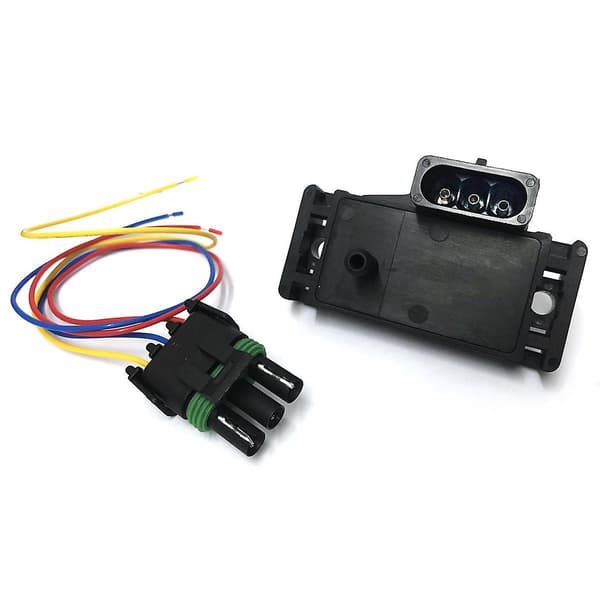

Package contents:
1 * sensor
Only the above package content, other products are not included.
