Unit-Puzzle is a multicolor light control unit consisting of an 8x8 RGB matrix made of 64 WS2812E RGB LEDs. Each LED is separated by an isolation structure to prevent interference between adjacent lights, ensuring that the light effect is clearer and purer.

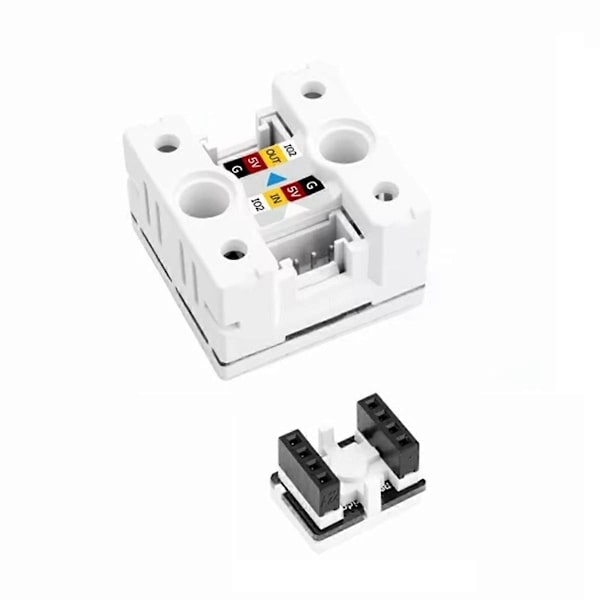

The product has two built-in Grove connectors - one for input signal and the other for output signal, with a connection part included to link multiple Puzzle units to expand the light display area.
The Grove interface also includes an IO port for connecting other M5 devices, such as a potentiometer, to enable more interactive control functions.
Unit-Puzzle is compact, easy to install, and has an M2 mounting hole on the bottom for secure fixation. This product is suitable for applications such as smart lighting, decorative displays, and interactive installations.
LED brightness: Continuous high brightness can cause damage; it is recommended to use 10% brightness to reduce heat and power consumption.
Specifications:
8x8 WS2812 RGB LED matrix
Grid isolation design
Dual Grove connectors
2x LEGO-compatible holes
Programming platforms: for Arduino, UIFlow, ESP-IDF, etc.
Color: White
Material: Plastic
Applications:
Smart lighting
Decorative displays
Interactive installations
The print/appearance may vary from batch to batch, but it does not affect use; the actual product may have color difference due to different light or display.
Package contents:
1x Unit-Puzzle
1x Expansion connector
1x HY2.0-4P Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture to differ slightly from the real thing. The allowed measurement error is +/- 1-3cm.
