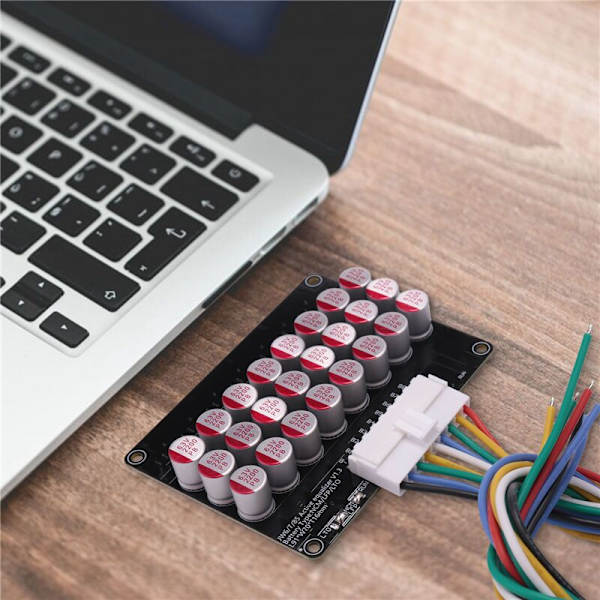

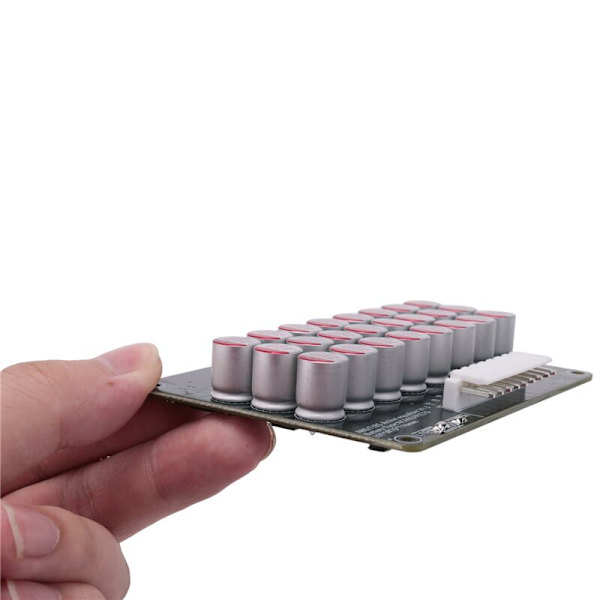

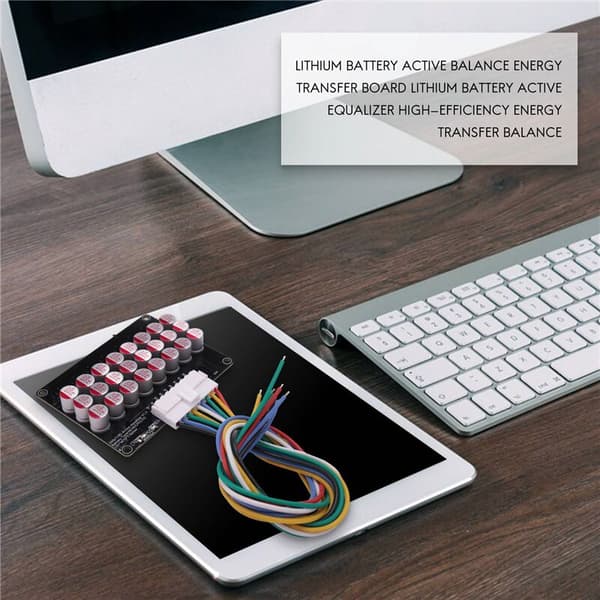

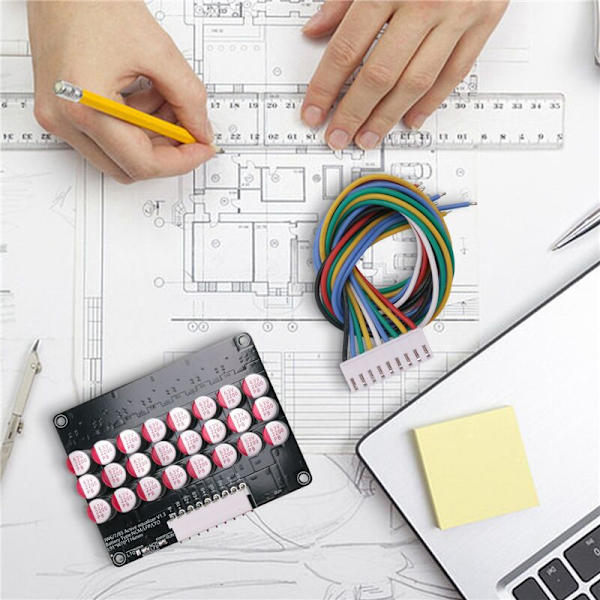

1. Lithium battery active balance energy transfer board Lithium battery active equalizer energy transfer balance with high efficiency
2. Capacitive energy transfer equalization board (5mv high precision, full group equalization, non-neighbor equalization); 3. Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.
4. operation, capacitive adjustment transfers the charge carrier, the equalization board is connected to the battery to start equalization work, the brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalization 0-5.5A;
The larger the battery, the larger the equalization, reserved for the sleeping switch wiring position, the sleeping power-off state operation is less than 0.1mA and the precision of the balancing voltage is 5mV!
5. The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60 and 300 AH.
6. With undervoltage sleep protection, the voltage automatically stops entering the sleep state when the voltage is lower than 3.0V, and the standby power consumption is lower than 0.1mA.
Material: PCB
Color: Black
Package Contents:

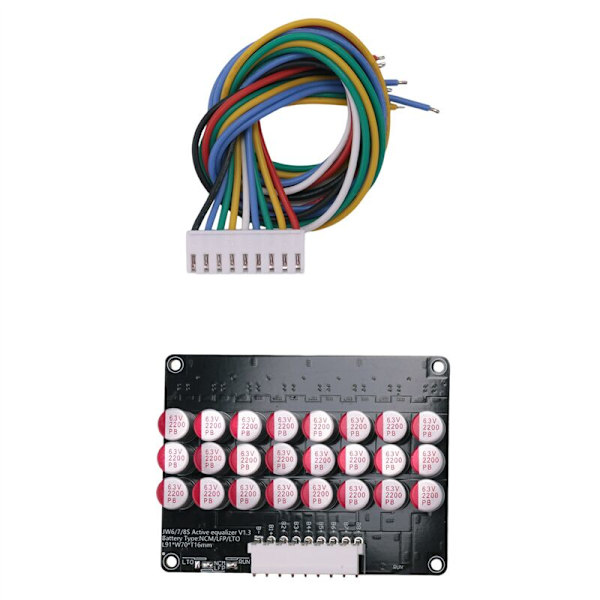

1 x Battery Equalizer Energy Transfer
Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
