Description

DC MOTOR DRIVER: The DRV8871 device is a brushed DC motor driver for printers, equipment, industrial equipment, and other small machines.

H-BRIDGE DRIVER: Two digital inputs control the H-bridge driver. The driver consists of four N-channel MOSFETs, which can control the motor in both directions with a peak current of up to 3.6 A.

CURRENT DECAY MODE: By selecting the current decay mode, the input can be pulse-width modulated (PWM) to control the motor speed.

ADVANCED CURRENT REGULATION CIRCUIT: The DRV8871 device features an advanced current regulation circuit, which does not use analog reference voltage or external sense resistor.

LOW POWER RESISTORS: This new solution uses standard inexpensive, low-power resistors to set the current threshold.

Specification:

Condition: 100% brand new Item Type: CC motor driver Material: Metal Color: Black H-bridge motor driver

- Drives one DC motor, one winding of a stepper motor, or other loads

Wide operating voltage range from 6.5 V to 45 V

RDS type 565 m (enabled) (HS + LS)

3.6 A maximum current operation

PWM control interface

Current regulation without sense resistor

Low power standby mode

Small package and size:

- HSOP 8-pin with PowerPAD

- 4.9 x 6 mm / 0.19 x 0.24 inches

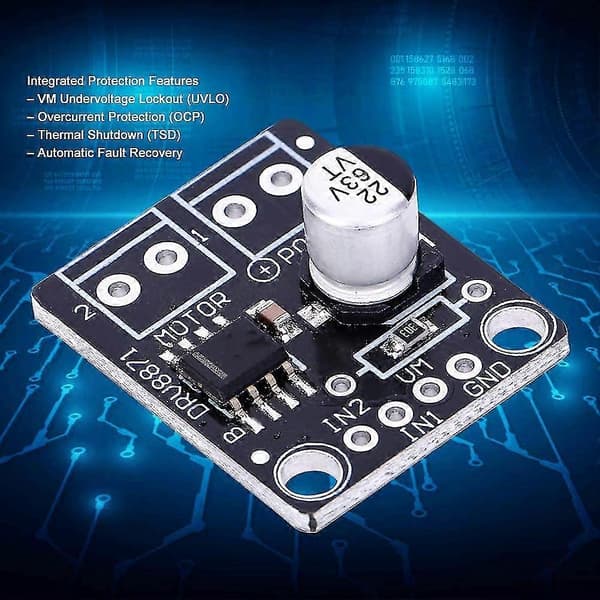

Integrated protection features:

- VM undervoltage lockout (UVLO)

- Overcurrent protection (OCP)

- Thermal shutdown (TSD)

- Automatic fault recovery applications:

Printers

Appliances and industrial equipment

Other mechatronic applications

Package list:

1 x m driver DC motor
